DAQUAN lightweight partition wall features: DAQUAN lightweight wall panel is a kind of solid core thin body new wall materials, materials of lightweight, greatly reduce the bearing of the construction. Its thickness between 50 mm - 200 mm, compared with traditional block thickness greatly save the building space.

Lightweight partition wall
Lightweight partition wall
Lightweight partition wall
  • Lightweight partition wall
  • Lightweight partition wall
  • Lightweight partition wall

Lightweight partition wall

Wall panel specifications:

Length:  2270, 2440 mm

Width: 610 mm

Thickness: 50, 60,75,90,120,150,180, 200mm

Weight:45-95kg/m2

Sound insulation: 36-50db

Fireproof: A level, fire resistance limit of 4 hours

DAQUAN lightweight partition wall features: DAQUAN lightweight wall panel is a kind of solid core thin body new wall materials, materials of lightweight, greatly reduce the bearing of the construction. Its thickness between 50 mm - 200 mm, compared with traditional block thickness greatly save the building space.



DAQUAN lightweight partition wall using scheme

/



DAQUAN lightweight sandwich panel is a kind of light weight energy saving wall material taking calcium silicate board as face board, with cement, EPS (polystyrene foam particles), sand, fly ash as core material forming by one time  compound.





Wall panel specifications:

Length:  2270, 2440 mm

Width: 610 mm

Thickness: 50, 60,75,90,120,150,180, 200mm

Weight:45-95kg/m2

Sound insulation: 36-50db

Fireproof: A level, fire resistance limit of 4 hours



Applications:

1) widely used in all kinds of old and new building non-load-bearing internal  and external walls;

2) suitable for industrial building fireproof and non load-bearing internal and   external wall.

3) suitable for steel structure internal and external wall;

4) suitable for old building reconstructing  partition wall, the floor has

requirements for bearing.

5) suitable for the occasion has high requirement for fireproof, sound insulation and moisture proof.

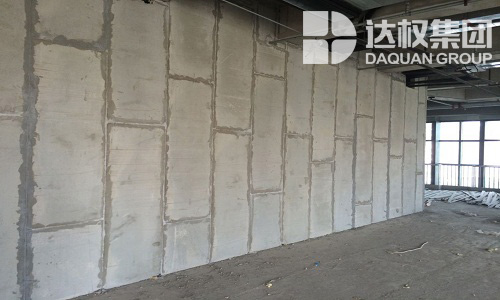

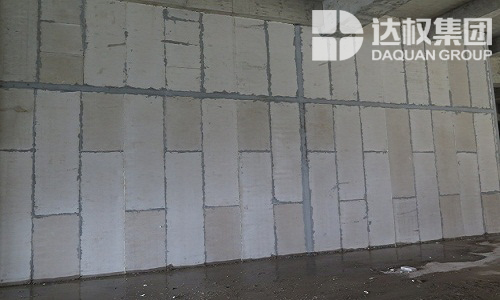

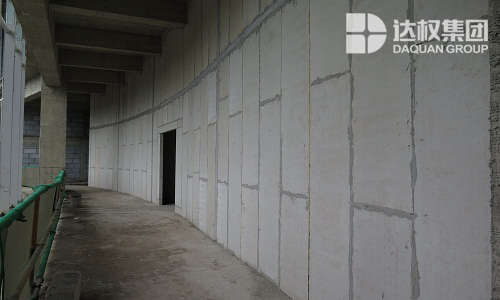

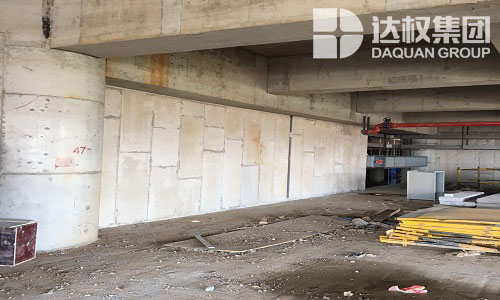

Site construction View

/









Product features

/


1、 Energy saving, green and environmental protection

DAQUAN lightweight sandwich panel using cold insulation environmental protection material, has good heat insulation function, have the function of automatically adjust the air moisture content as to the seasons climate change, maintain

indoor temperature to a constant level, achieve the ecological regulation effect, keeping pace with the development of modern ecological residential building.

2Waterproof, fireproof

DAQUAN  sandwich panel in the fire resistance of 1000 degrees Celsius temperature for 4 hours, non-combustible performance meet national A level standard, and the material not emission any poisonous gas, completely meet international environmental standards.

DQ sandwich panel no need plaster and can be made into containers take water, without any leakage.

3 Sound insulation, sound-absorbing

DAQUAN sandwich panel has a good sound insulation performance and sound-absorbing function. DAQUAN 90mm thick wall reach the volume of 45 db, traditional  block the volume of 20 db.

4 Lightweight, Space cost saving

DAQUAN lightweight wall panel is a kind of solid core thin body new wall materials, materials of lightweight, greatly reduce the bearing of the construction. Its thickness between 50 mm - 200 mm, compared with traditional block thickness greatly save the building space. For example: traditional block add plaster with an average thickness of 240 mm + 40 mm, and DAQUAN  lightweight panel thickness of 90 mm do interior partition can meet all the    requirements and achieve national testing standards.

5Easy construction, Shorter time

DAQUAN sandwich panel construction is precast construction, the whole assembly or construction process is simple, effective, no construction waste, no plaster, shorten the construction time. Traditional block wall need 12 people 60 minutes construction, use DAQUAN lightweight partition panel only need 3   people 60 minutes to complete, save a lot of labor cost.

6 High strength, Earthquake proof, High safety

DAQUAN sandwich panel take prefabricated construction, the overall intensity is high, the seismic performance higher than that of the masonry wall dozens of times, anti-impact performance higher than that of the masonry several times, under the impact force of 50 kgs, without a slightest transfixion crack, overall no deformation, surface without loose marks; DAQUAN  htweight wall panel can be directly nailing or bolts on the hook hanging   heavy objects, such as air-conditioner etc.
